APV Flexible Hose

APV Flexible Hose

PRODUCT

APV Flexible Hose

APV HOSE is Tough, Light(weight), Excellent Flexible, and Easy to Handle

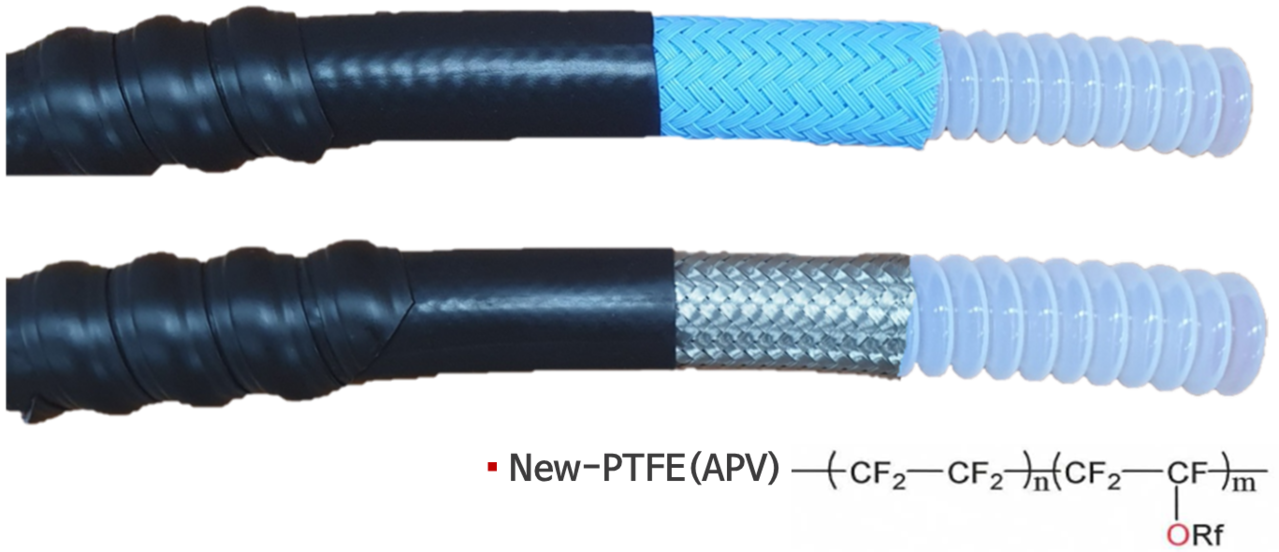

  • Convoluted tube made of " NEW-PTFE"
  • The materials is same as that of APV lined products
  • Reinforced APV convoluted hose(PP braid/SUS braid)
  • Excellent flushing performance as same as APV lined containers
  • Easy to handle, has shorter bending radius
  • Excellent flatness of the inner surface to keep the surface flatness by Corrugation process

APV Hose Sizes and Types

Normal Diameter
Outside Diameter
(APV+Braid+EPDM) (ømm)
Outside Diameter
(APV+Braid+EPDM +PE guard) (ømm)
Inside Diameter
(ømm)
Working Pressure
(MPa)
Burst Pressure
(MPa)
Minimum Bend Radius
(mm)
Weight
(kg/m)
Production Length
(Max.)
15A
25.7
33.7
12.7
3.27
13.09
51
0.31
30
20A
34.8
42.8
18.8
2.93
11.71
70
0.45
30
25A
40.6
48.6
25.5
2.58
10.34
102
0.61
30
40A
57.0
67.0
38.2
2.24
8.96
153
0.94
30
50A
68.0
78.0
50.9
1.89
7.58
191
1.09
30

Features of APV Hose Compared to Tube Type Hose

Weight Comparison
Over 50% lighter than the straight type

호칭 경
APV Hose (kg/m)
Tube type Hose(kg/m)
경량성 비교
15A
0.31
0.52
60%
20A
0.45
0.92
49%
25A
0.61
1.12
55%
40A
0.94
1.79
53%
50A
1.09


Flexibility Comparison
Minimum bending radius approximately 15% smaller than the straight type

호칭 경
APV Hose (m m)
Tube type Hose(mm)
굴곡성 비교
15A
51
64
20%
20A
70
83
15%
25A
102
121
15%
40A
153
229
33%
50A
191
