PRODUCT

Clean Loading &
Un-Loading Unit

CLUS Series

A system designed for the safe and clean transfer of large volumes of high-purity chemicals to production equipment or unloading into ISO containers.

  • Equipped with ACQC (Automatic Clean Quick Coupler) Female Coupler on pipelines
  • Clean & Safe Transfer (Cyclone-type D.I. water cleaning and drying of wetted parts)
  • Fast Transfer Speed (50A ACQC Cv: 22.7)
  • Unique key-code system prevents incorrect chemical connection
  • Easy Installation & Maintenance
  • Easy Operation via touch screen interface

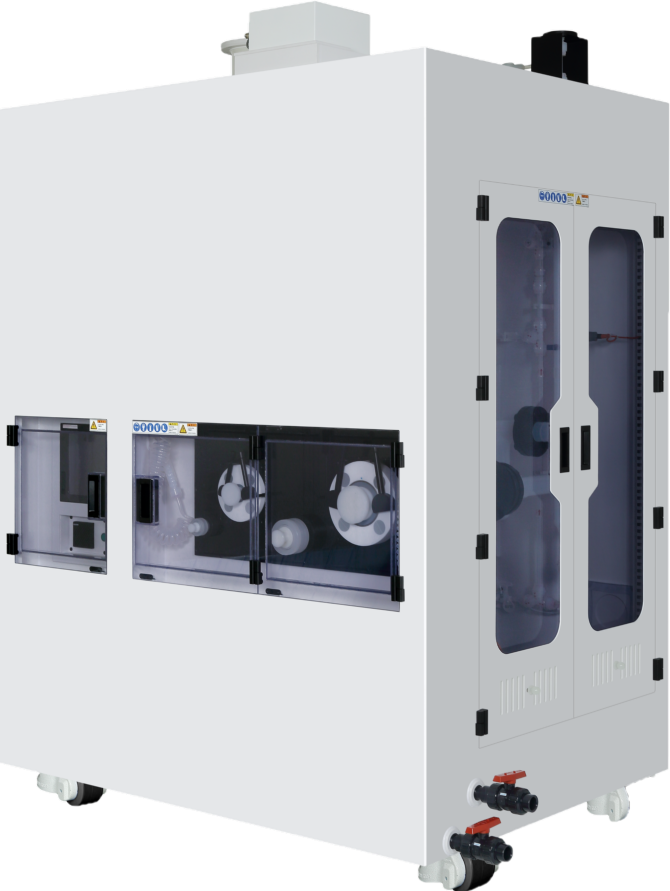

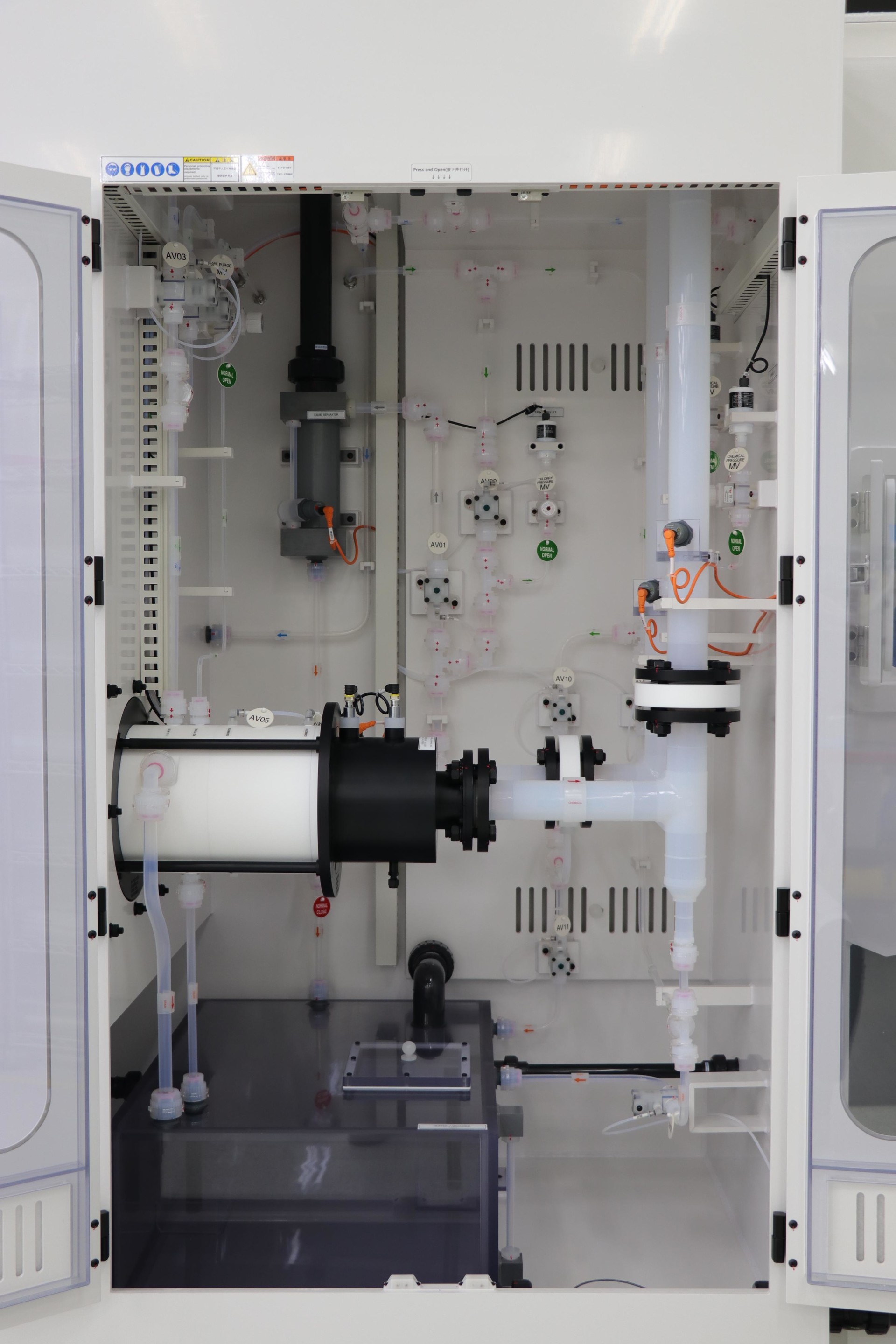

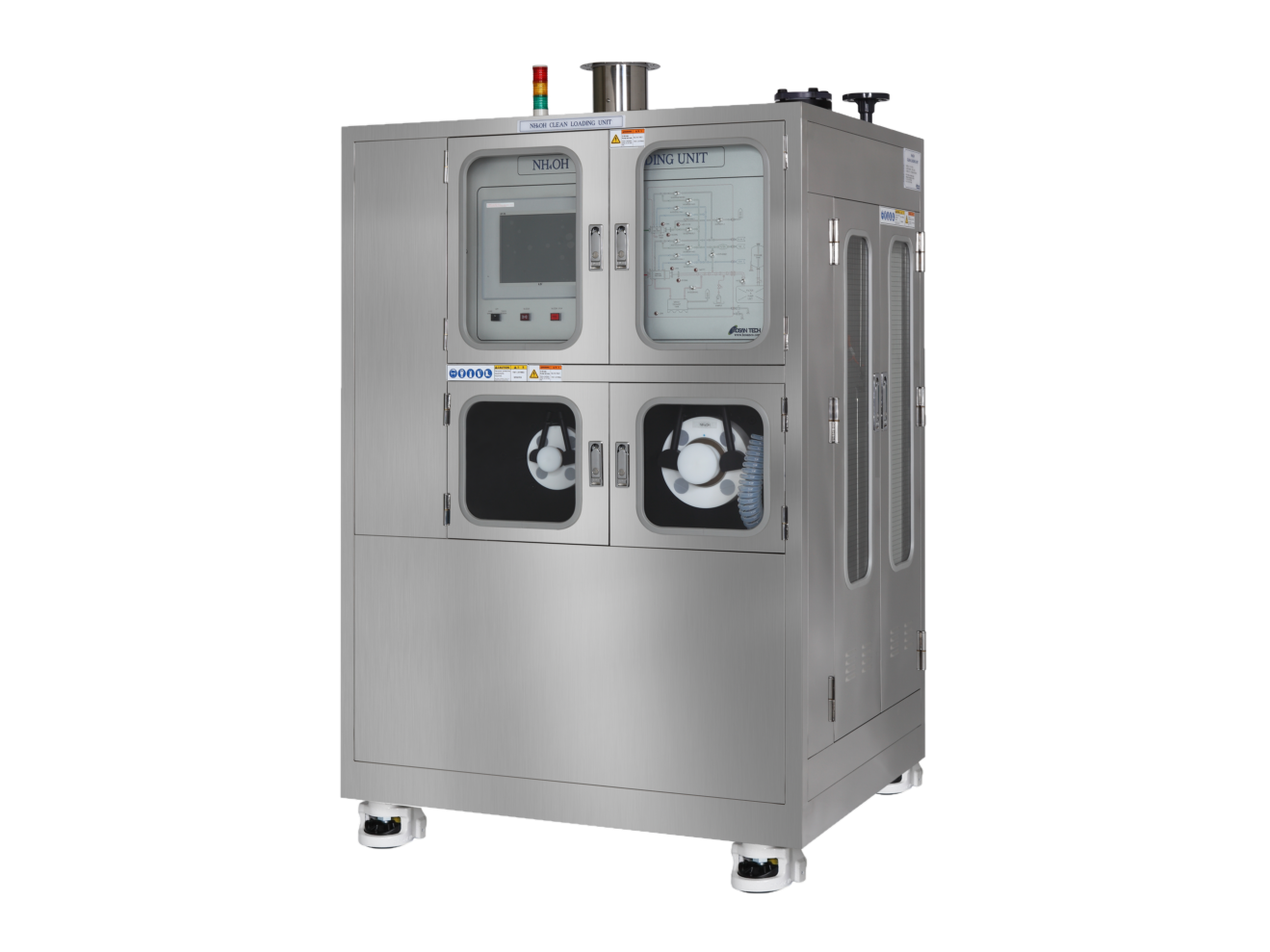

CLUS-H1

* 터치하시면 큰 그림으로 볼 수 있습니다.

Size1,600(w) x 1,200(d) x 2,150(h) *Customization available
Cabinet
Acid, Alkali : PVC
Solvent : SUS 304 H/L
Wetted part materialAcid, Alkali : PTFE, PFA
Solvent : SUS 316L EP
Chemical ACQC (Size)Acid, Alkali : Teflon (50A (2"))
Solvent : SUS 316L EP (50A (2"))
N2 ACQC (Size)Acid, Alkali : Teflon (20A (3/4"))
Solvent : SUS 316L EP (20A (3/4"))
Used Pressure
3.5 kgf/cm²
Control System
LS PLC *Other Maker Available
Operation Panel
15" Touch screen & Graphic switch panel

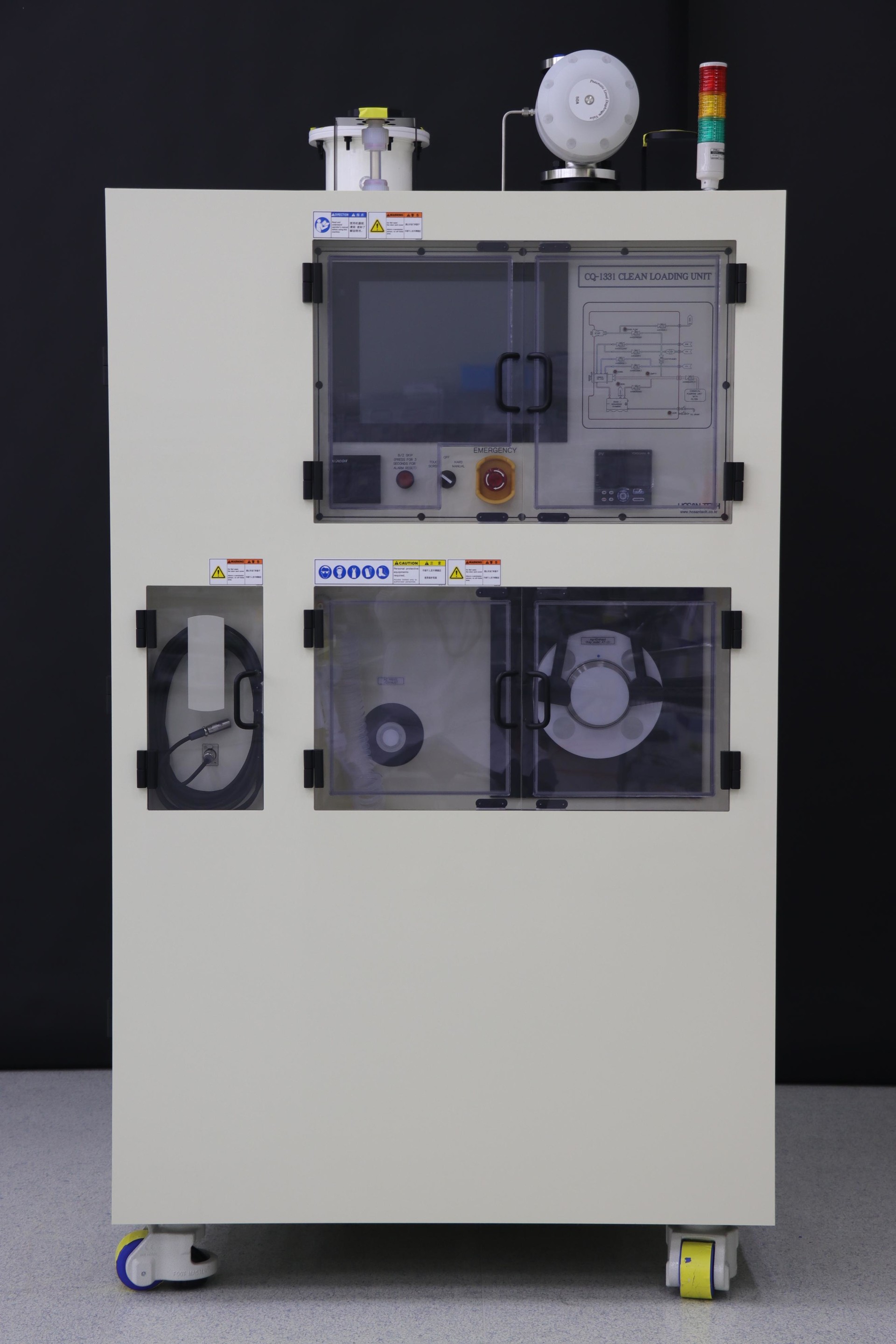

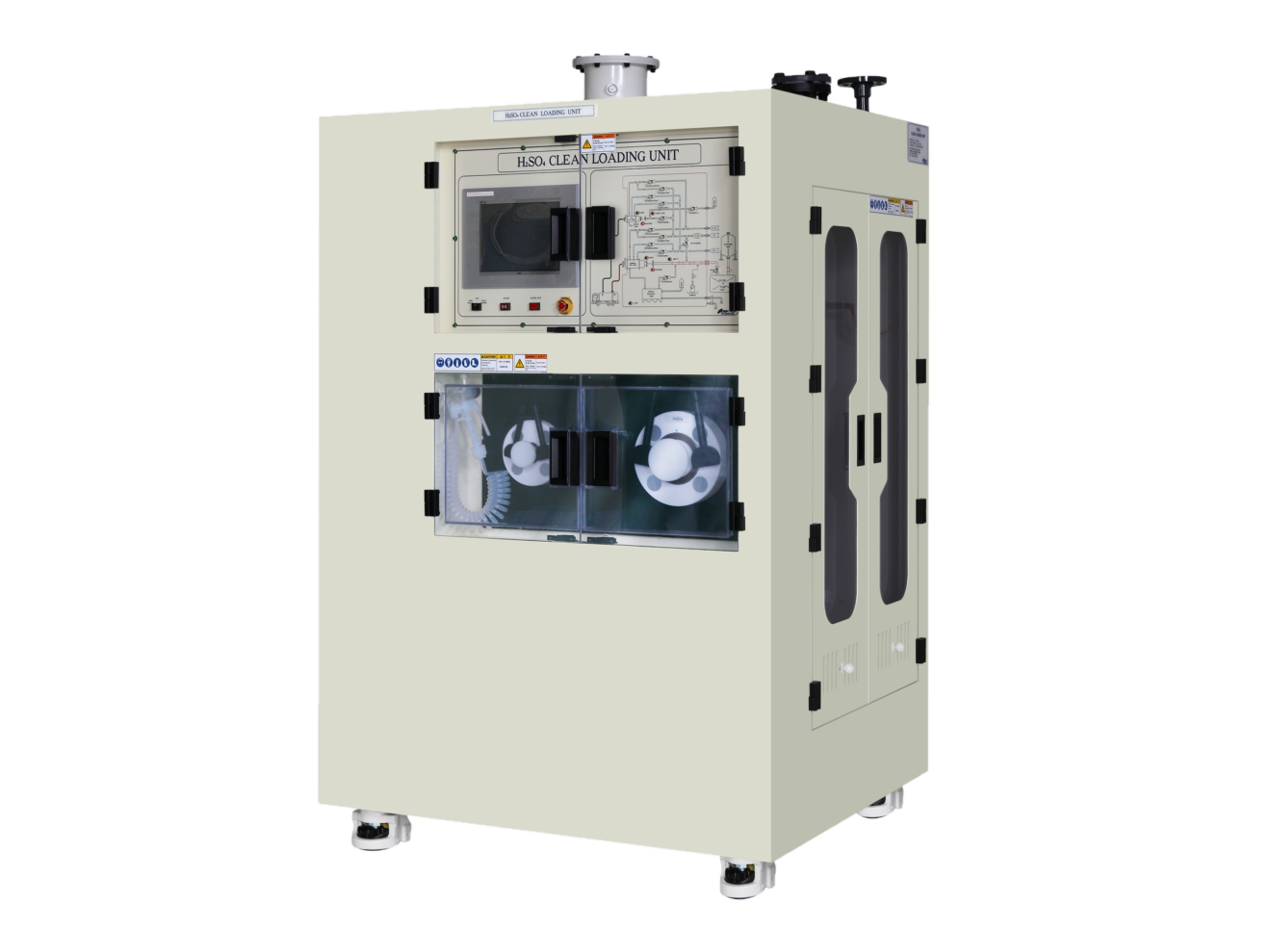

CLUS-H2

* 터치하시면 큰 그림으로 볼 수 있습니다.

Size1,100(w) x 1,000(d) x 2,020(h)
*Customization available
Cabinet
Acid, Alkali : PVC
STS 304 H/L
Wetted part material
Acid, Alkali : PTFE, PFA
STS 316L EP
Chemical ACQC (Size)Acid, Alkali : Teflon (50A (2"))
STS 316L EP (50A (2”))
N2 Manual Coupler (Size)Acid, Alkali : Teflon (20A (3/4"))
STS 316L EP (20A (3/4”))
Used Pressure
3.5 kgf/cm²
Control System
LS PLC *Other Maker Available
Operation Panel
15" Touch screen & Graphic switch panel
mobile background

PRODUCT

Clean Loading & Un-Loading Unit
(ACQC SYSTEM)

CLUS Series
A system designed for the safe and clean transfer of large volumes of high-purity chemicals to production equipment or unloading into ISO containers.

  • Equipped with ACQC (Automatic Clean Quick Coupler) Female Coupler on pipelines
  • Clean & Safe Transfer (Cyclone-type D.I. water cleaning and drying of wetted parts)
  • Fast Transfer Speed (50A ACQC Cv: 22.7)
  • Unique key-code system prevents incorrect chemical connection
  • Easy Installation & Maintenance
  • Easy Operation via touch screen interface

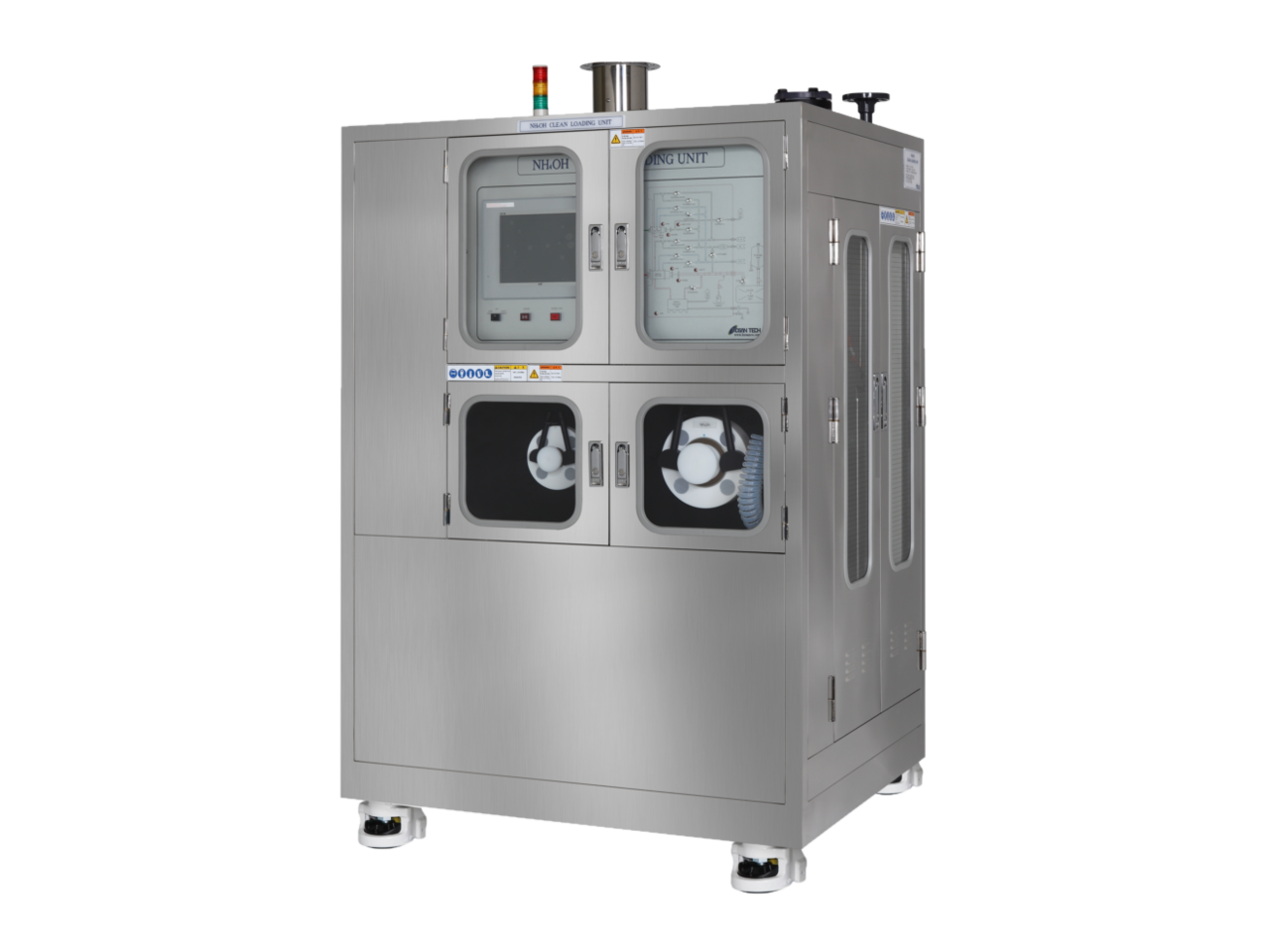

CLUS-H1

* Click to view a larger image.

Size1,600(w) x 1,200(d) x 2,150(h) *Customization available
Cabinet
Acid, Alkali : PVC
Solvent : SUS 304 H/L
Wetted part materialAcid, Alkali : PTFE, PFA
Solvent : SUS 316L EP
Chemical ACQC (Size)Acid, Alkali : Teflon (50A (2"))
Solvent : SUS 316L EP (50A (2"))
N2 ACQC (Size)Acid, Alkali : Teflon (20A (3/4"))
Solvent : SUS 316L EP (20A (3/4"))
Used Pressure
3.5 kgf/cm²
Control System
LS PLC *Other Maker Available
Operation Panel
15" Touch screen & Graphic switch panel

CLUS-H2

Size1,100(w) x 1,000(d) x 2,020(h)
*Customization available
Cabinet
Acid, Alkali : PVC
STS 304 H/L
Wetted part material
Acid, Alkali : PTFE, PFA
STS 316L EP
Chemical ACQC (Size)Acid, Alkali : Teflon (50A (2"))
STS 316L EP (50A (2”))
N2 Manual Coupler (Size)Acid, Alkali : Teflon (20A (3/4"))
STS 316L EP (20A (3/4”))
Used Pressure
3.5 kgf/cm²
Control System
LS PLC *Other Maker Available
Operation Panel
15" Touch screen & Graphic switch panel
